Oracle Audit Vault
Version 10.2.3
Resources

Links of Interest
Audit Vault Technology Center

Audit Vault Documentation

Auditor's Guide

Audit Vault Downloads

Download Licenses and CDs


Operating System Oracle Unbreakable Linux 4.0

Operating System Installation and Configuration

Option instructions to verify O/S installation
# Verify the Linux version
$ cat /etc/issue

# Verify kernel version is 2.4.21-138 (or later)
$ uname -r

# Verify packages are appropriate
#  gcc-3.2.2-38 or later
#  make-3.79 or later
#  binutils-2.12
#  openmotif-2.2.2-124
$ rpm -q gcc make binutils openmotif

-- If the following packages are not installed get them from Disk 3
rpm -Uvh libaio-0.3.105-2.i386.rpm
rpm -Uvh libaio-devel-0.3.105-2.i386.rpm

-- If the following rpms are not installed get them from Disk 4
rpm -Uvh elfutils-libelf-devel-0.97.1-3.i386.rpm
rpm -Uvh elfutils-devel-0.97.1-3.i386.rpm

# Verify the amount of RAM (min. 512MB)
$ grep MemTotal /proc/meminfo

# Verify the amount of swap space (min. 2X RAM)
$ grep SwapTotal /proc/meminfo

# Verify the amount of free disk space (min. 1.4 GB) for software
$ df -h

# Verify the amount of free disk space (min. 700 MB) for database files.
# The actual amount of space required depends on transactions and
# transaction volume.

$ df -h

# Verify the amount of free disk space in /tmp
$ df -h /tmp
# There must be at least 400MB

As root: Create DBA Group and Oracle User
/usr/sbin/groupadd oinstall
/usr/sbin/groupadd dba
/usr/sbin/groupadd oper
/usr/sbin/useradd -m -g oinstall -G dba,oper oracle
id oracle

passwd oracle
-- set the password to oracle1

id nobody/

-- if nobody does not exist then

/usr/sbin/useradd nobody

As root: Create Installation Directories
mkdir -p /app/oracle
chown -R oracle:dba /app/oracle
chmod -R 775 /app/oracle

mkdir /stage
chown -R oracle:dba /stage

As root: Alter Kernel Parameters in sysctl.conf by appending the highlighted text.
-- modify kernel parameters in sysctl.conf
cat >> /etc/sysctl.conf <<EOF
fs.file-max = 65536
kernel.shmall = 2097152
kernel.shmmax = 2147483648
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.core.rmem_default = 1048576
net.core.rmem_max = 1048576
net.core.wmem_default = 262144
net.core.wmem_max = 262144
net.ipv4.ip_forward = 0
net.ipv4.conf.default.rp_filter = 1
net.ipv4.ip_local_port_range = 1024 65000
EOF

-- activate changes
/sbin/sysctl -p


As root: Set Shell Limits
-- modify limits.conf
cat >> /etc/security/limits.conf <<EOF
oracle soft nproc 2047
oracle hard nproc 16384
oracle soft nofile 1024
oracle hard nofile 65536
EOF

-- Modify /etc/pam.d/ login
-- read the file and place above the last lines as indicated
session required /lib/security/pam_limits.so
session required pam_limits.so

As root: Change Default Profile
cd /etc

-- if Bourne, Korn or Bash shell
cat >> /etc/profile <<EOF
if [ \$USER = "oracle" ]; then
  if [ \$SHELL = "/bin/ksh" ]; then
    ulimit -p 16384
    ulimit -n 65536
  else
    ulimit -u 16384 -n 65536
  fi
fi
EOF

-- if C shell
cat >> /etc/csh.login <<EOF
if ( \$USER == "oracle" ) then
  limit maxproc 16384
  limit descriptors 65536
end if
EOF

As root: Append servers to hosts file
cd /etc

Note: the line:
127.0.0.1   omega#.psoug.org   omega#   localhost.localadmin localhost
must remain. If you delete it ... nothing will work properly.


vi hosts
192.168.1.211 alpha1 alpha1.psoug.org
192.168.1.212 alpha2 alpha2.psoug.org
192.168.1.221 beta1 beta1.psoug.org
192.168.1.222 beta2 beta2.psoug.org
192.168.1.231 gamma1 gamma1.psoug.org
192.168.1.232 gamma2 gamma2.psoug.org
192.168.1.241 delta1 delta1.psoug.org
192.168.1.242 delta2 delta2.psoug.org

Note:
names must be resolve only through /etc/hosts. Verify this:
cat /etc/nsswitch.conf | grep hosts

-- ping all hosts (substitute actual node names for the "omega")

ping 192.168.1.1
ping www.oracle.com
ping omega1
ping omega2
ping omega1.psoug.org
ping omega2.psoug.org

As root: Edit /home/oracle .bashrc
# cd /home/oracle

vi .bashrc

-- append the following:
umask 022

ORACLE_BASE=/app/oracle/product
ORACLE_HOME=/app/oracle/product/10.2.2/av_1
ORACLE_SID=avomega
# on the secondary use prodomega
LD_LIBRARY_PATH=$ORACLE_HOME/lib:$LD_LIBRARY_PATH
TMP=/tmp
TEMP=/tmp
TMPDIR=/tmp
PATH=$ORACLE_HOME/bin:$PATH
export PATH ORACLE_BASE ORACLE_HOME ORACLE_SID LD_LIBRARY_PATH
export TMP TEMP TMPDIR

alias oh='cd $ORACLE_HOME'
alias sql='sqlplus "/ as sysdba"'

Audit Vault Installation

As root: Assuming files are located at /vol/stage
IF outside the PSOUG lab THEN
  http://otn.oracle.com ... click on downloads
ELSE ...

# mount -rt nfs 192.168.10.100:/vol/stage /mnt

# cd /mnt/avserver

# ls -al

# cp *server* /stage

# exit and log off

As oracle: Unzip the installation files and start the installer
# cd /stage

# ls -al

# unzip a*

# cd server

# ls -al

# ./runInstaller

Source Database

Source Database Configuration
set pagesize 35
set linesize 121
col NAME format a30
col VALUE format a20
col DESCRIPTION format a60

-- visible parameters
SELECT x.ksppinm NAME, y.ksppstvl VALUE, ksppdesc DESCRIPTION
FROM x$ksppi x, x$ksppcv y
WHERE x.inst_id = userenv('Instance')
AND y.inst_id = userenv('Instance')
AND x.indx = y.indx
AND SUBSTR(x.ksppinm,1,1) ^= '_'
ORDER BY 1;

-- hidden parameters
SELECT x.ksppinm NAME, y.ksppstvl VALUE, ksppdesc DESCRIPTION
FROM x$ksppi x, x$ksppcv y
WHERE x.inst_id = userenv('Instance')
AND y.inst_id = userenv('Instance')
AND x.indx = y.indx
AND SUBSTR(x.ksppinm,1,1) = '_'
ORDER BY 1;

-- scope=BOTH
ALTER SYSTEM SET global_names = TRUE SCOPE=BOTH;
ALTER SYSTEM SET undo_retention = 3600 SCOPE=BOTH;
ALTER SYSTEM SET "_spin_count" = 5000 SCOPE=BOTH;

-- scope=SPFILE
ALTER SYSTEM SET audit_trail = DB_EXTENDED SCOPE=SPFILE;
ALTER SYSTEM SET audit_sys_operations = TRUE SCOPE = SPFILE;
ALTER SYSTEM SET "_job_queue_interval" = 1 SCOPE=SPFILE;

shutdown immediate;

startup mount exclusive;

ALTER DATABASE archivelog;
ALTER DATABASE force logging;
ALTER DATABASE add supplemental log data;

alter database open;

SELECT log_mode
FROM v$database;

col dest_name format a20
col destination format a50

SELECT dest_id, dest_name, destination, valid_now
FROM gv$archive_dest;

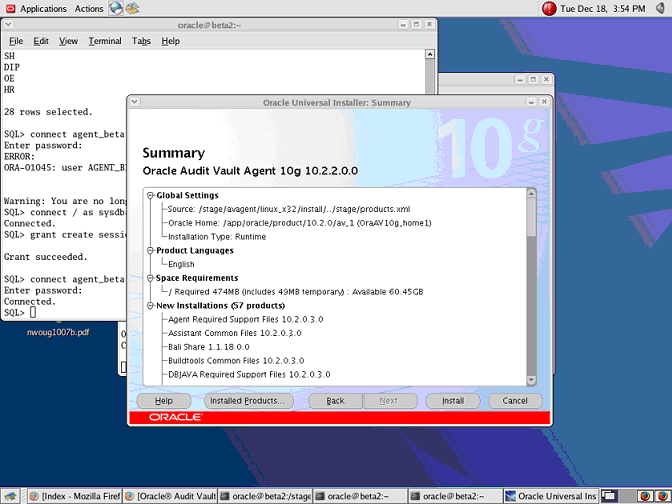

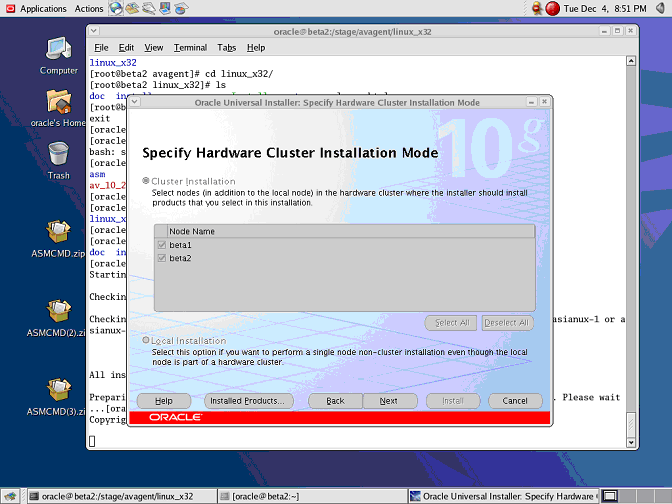

Agent Installation

As root: Assuming files are located at /vol/stage
IF outside the PSOUG lab THEN
  http://otn.oracle.com ... click on downloads
ELSE ...

# cd /etc

# vi hosts
-- add an entry for the audit vault server
192.168.1.2##     omega1.psoug.org     psoug.org

# mount -t nfs 192.168.10.100:/vol/stage /mnt

# cd /mnt/avagent

# ls -al

# cp a* /stage

# cd /stage

# ls -al

# unzip a*

# cd avagent/linux_x32

# ls -al

# ./runInstaller

Shell Scripts

Sample Startup
$ORACLE_HOME/bin/lsnrctl start
sleep 15

$ORACLE_HOME/bin/sqlplus /nolog <<EOF1
connect / as sysdba
startup
EOF1
sleep 15

$OMA_HOME/bin/emctl start agent
$OMS_HOME/bin/emctl start oms

$OMS_HOME/opmn/bin/opmnctl startall

Sample Shutdown
$OMS_HOME/opmn/bin/opmnctl stopall
$OMA_HOME/bin/emctl stop agent
$OMS_HOME/bin/emctl stop oms

$ORACLE_HOME/bin/sqlplus /nolog <<EOF1
connect / as sysdba
shutdown immediate
EOF1

$ORACLE_HOME/bin/lsnrctl stop

AV Server Installation Screenshots

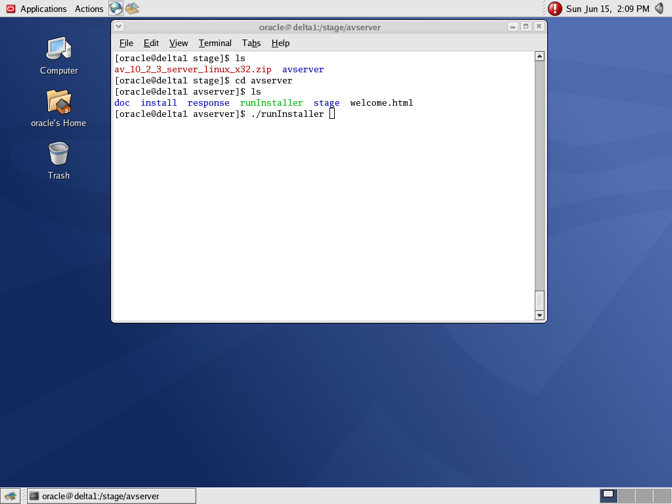

Step 1

Begin Installation Process

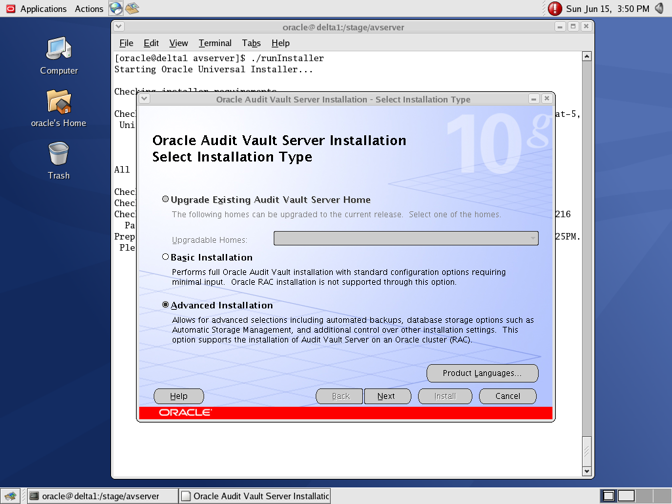

Step 2

Installation Type

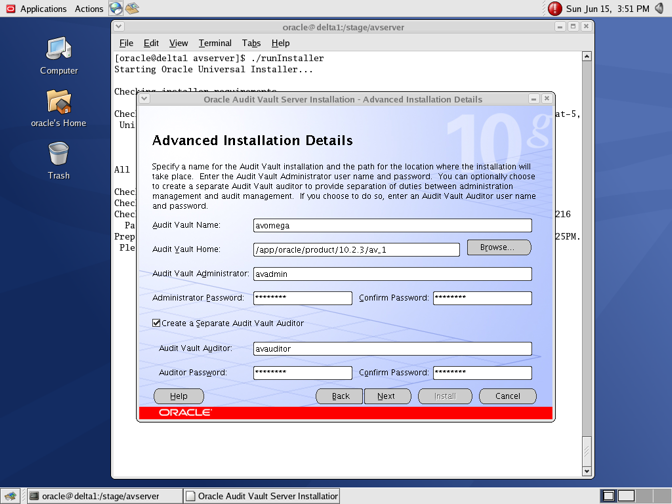

Step 3

Advanced Installation Details

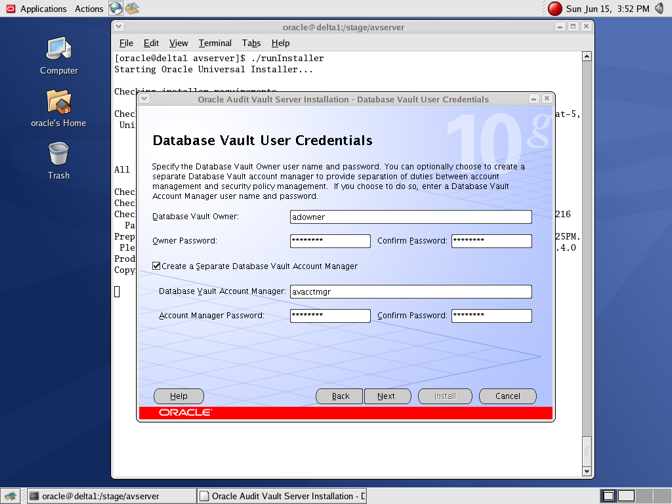

Step 4

Database Vault User Credentials

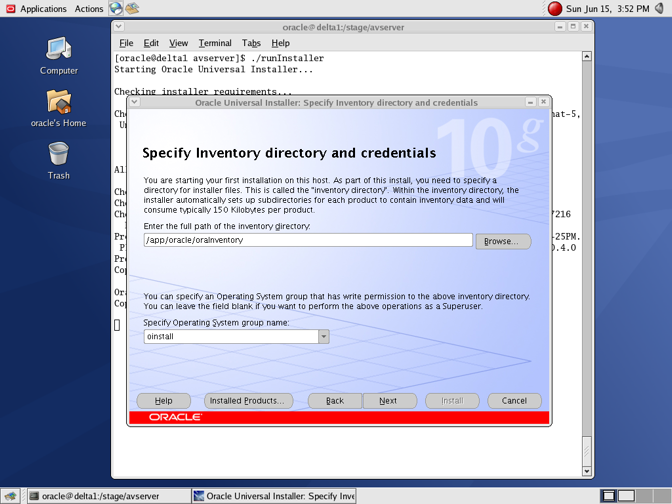

Step 5

Specify Inventory Directory and Credentials

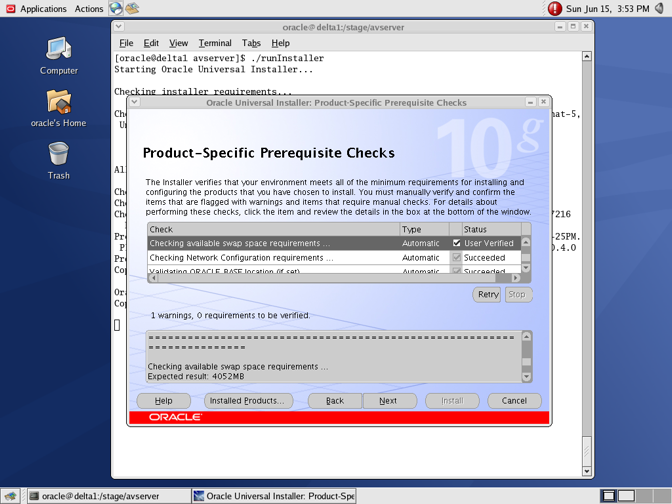

Step 6

Product-Specific Prerequisite Checks

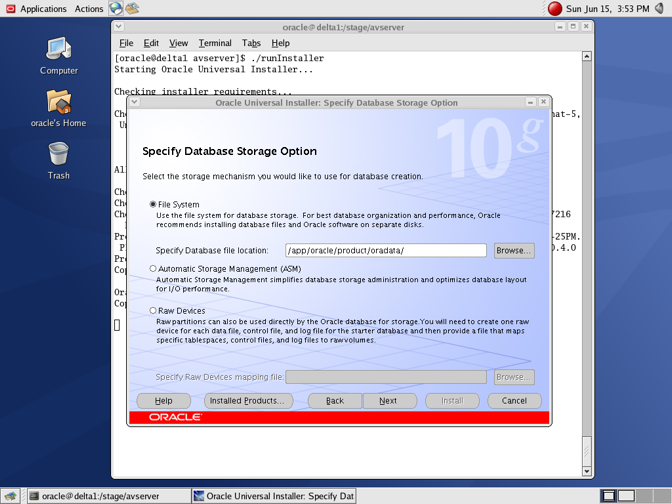

Step 7

Specify Database Storage Option

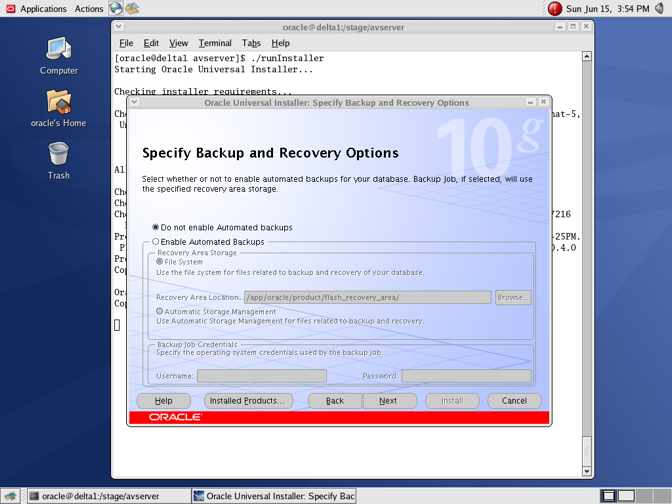

Step 8

Backup and Recovery Options

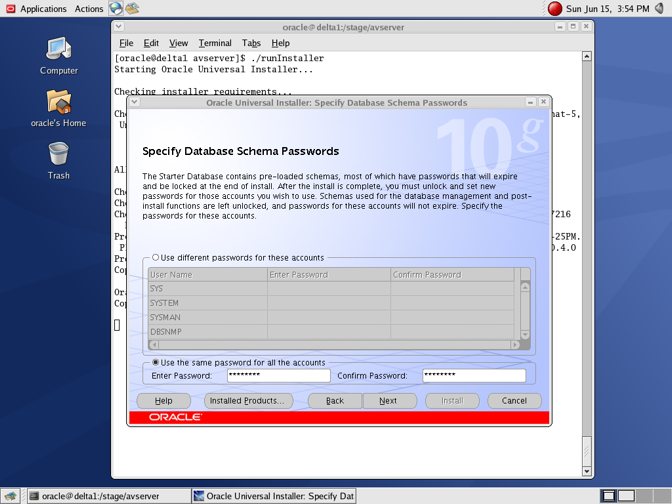

Step 9

Specify Database Schema Passwords

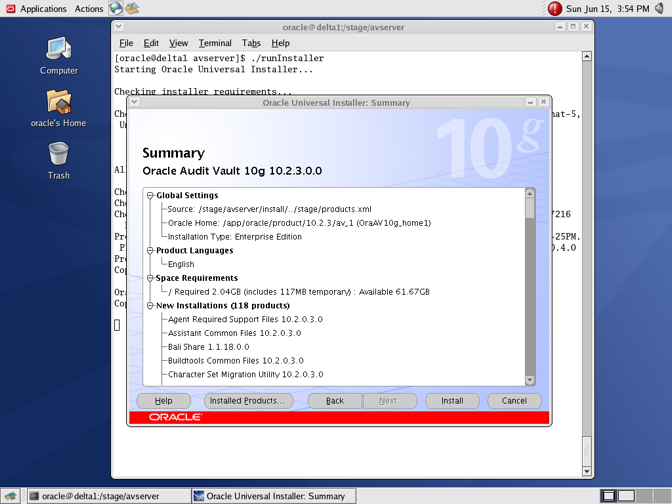

Step 10

Summary Screen

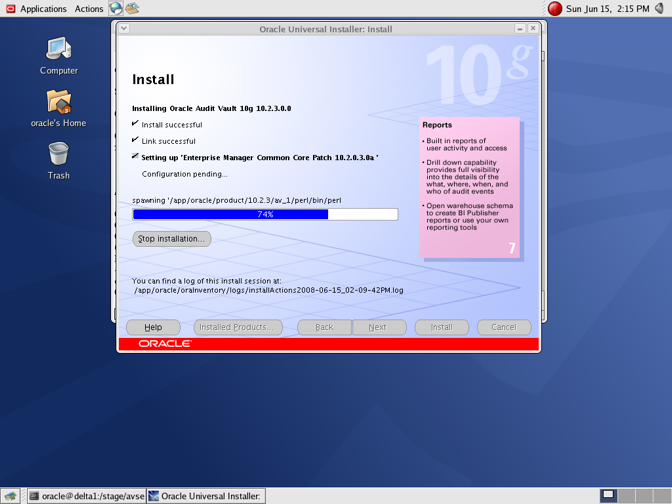

Step 11

Installation In Progress

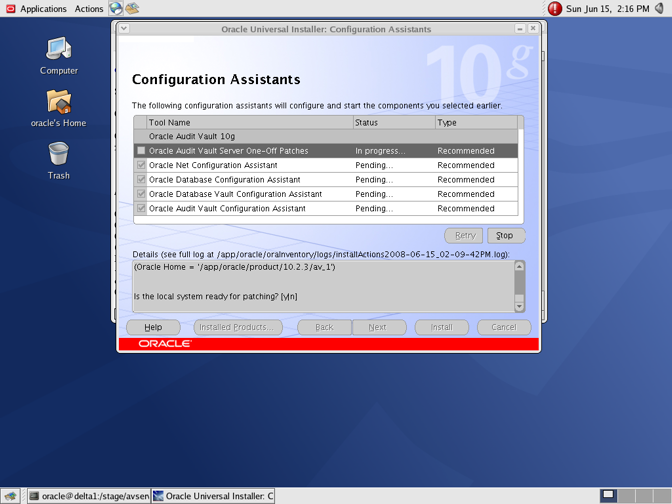

Step 12

Configuration Assistants

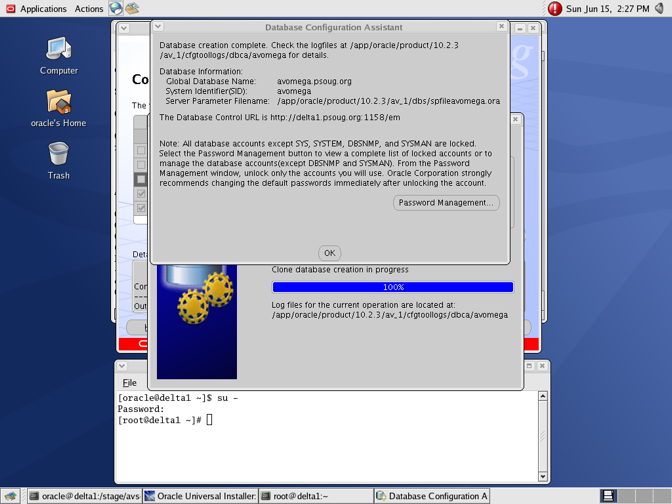

Step 13

Password Management

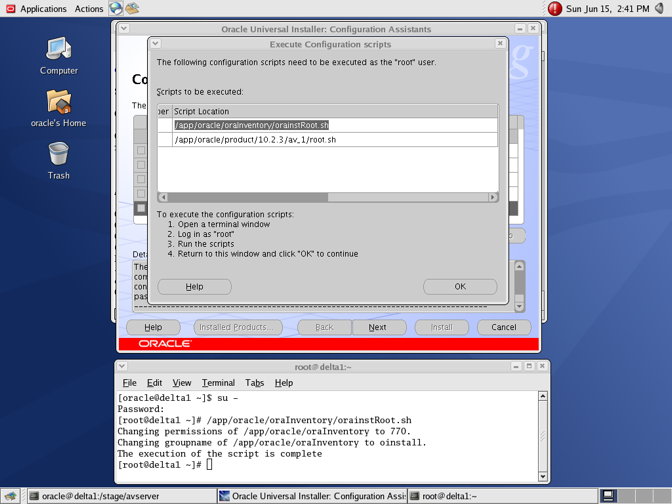

Step 14

Configuration Shell Scripts

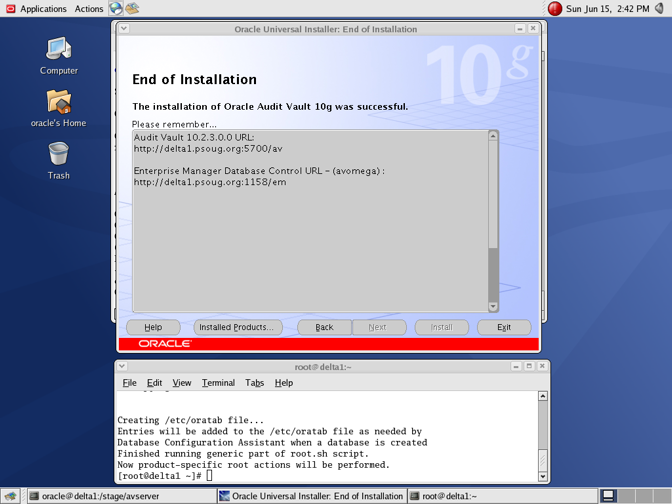

Step 15

End of Installation

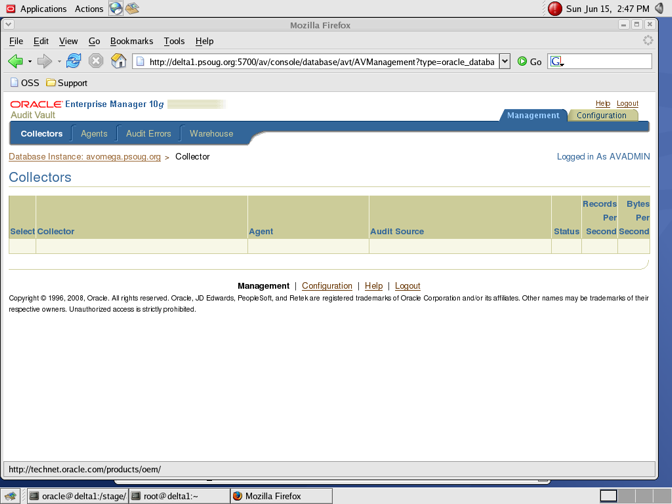

Step 16

Avadmin Screen

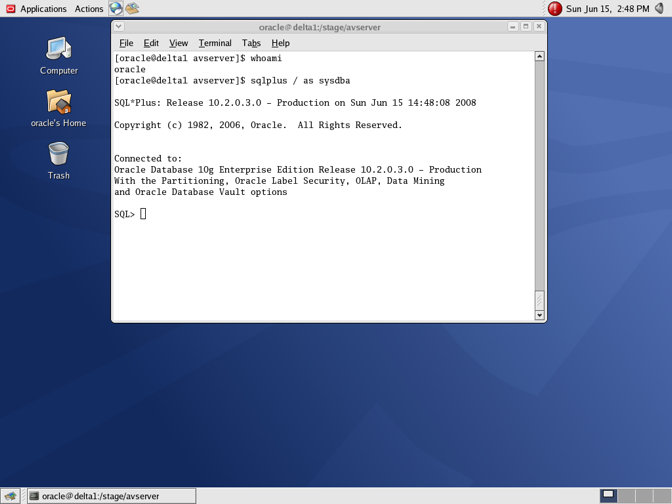

Step 17

SQL*Plus: SYSDBA

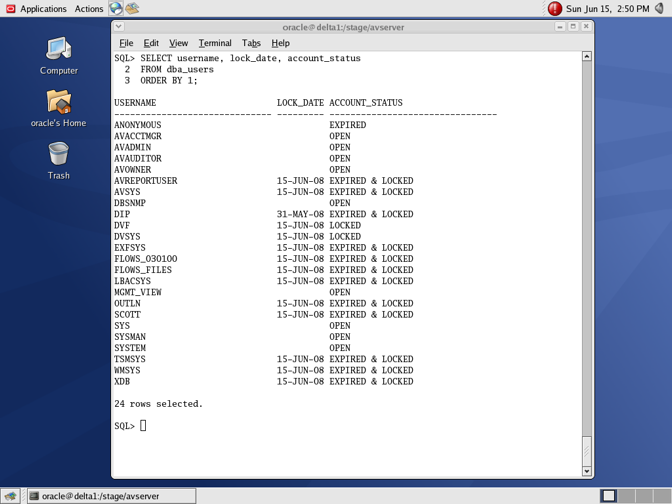

Step 18

SQL*Plus: Schemas

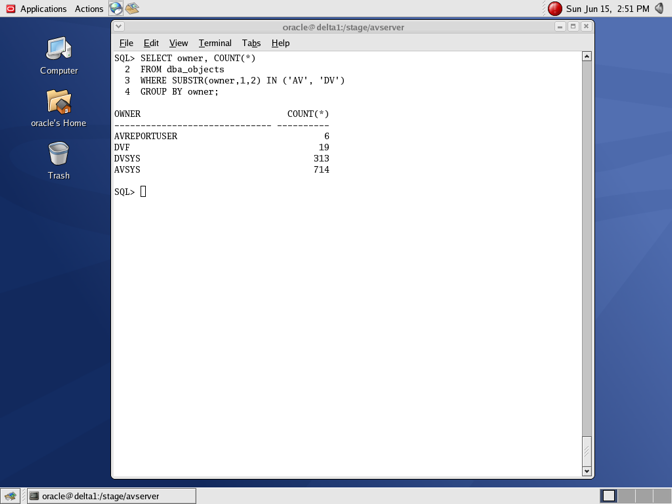

Step 19:

SQL*Plus: Objects by Schema

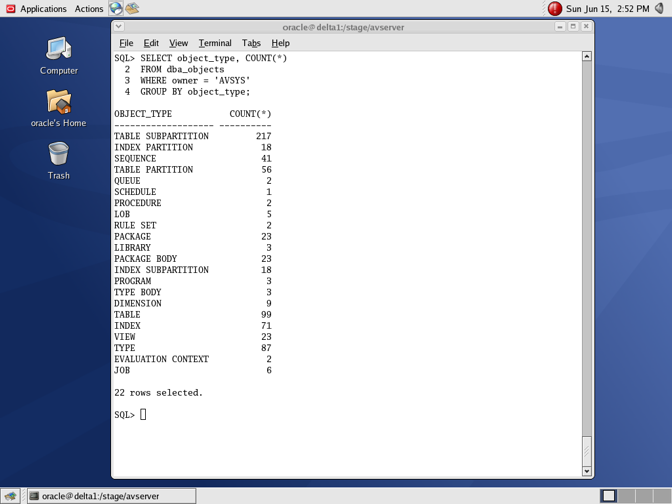

Step 20

AVSYS Objects

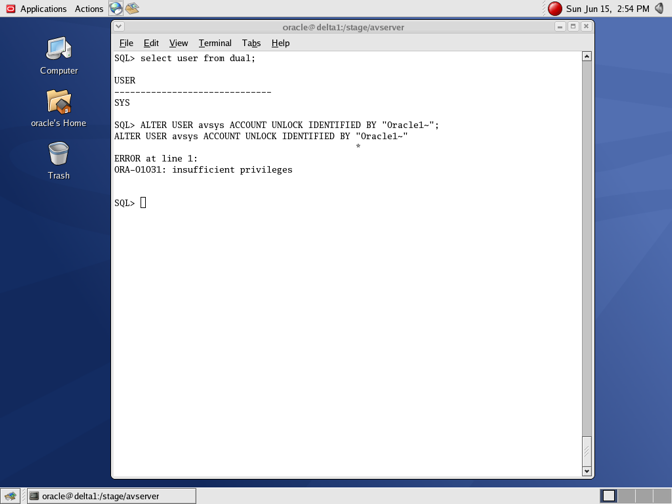

Step 21

Separation of Duties


AV Server Installation Screenshots

Step 1

Step 2

Step 3

Step 4
